Product Description

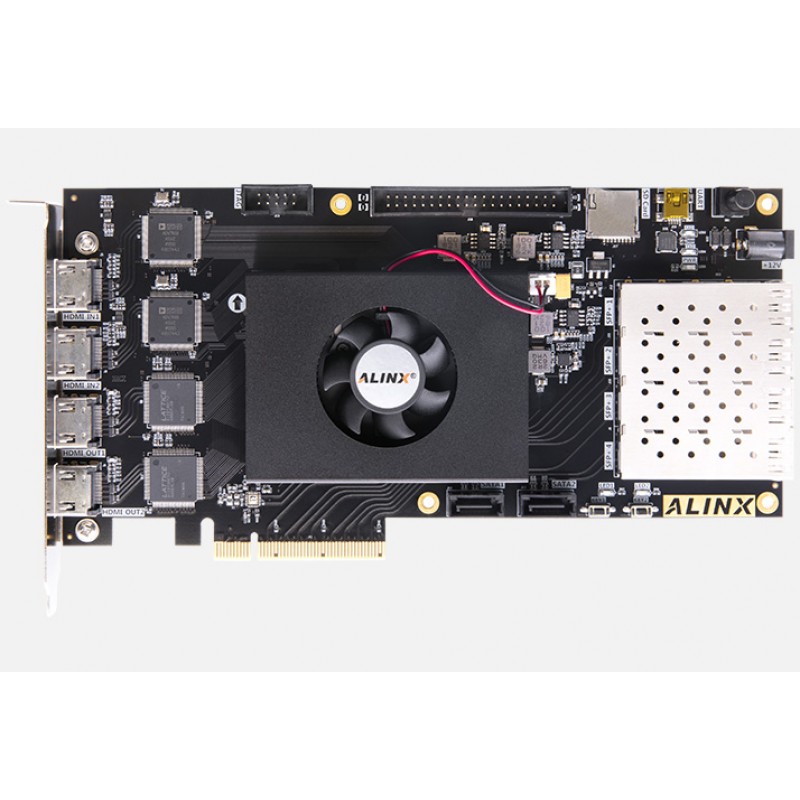

The AV7K325 FPGA development board equipped with the AMD/Xilinx Kintex 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, PCIe, HDMI, SFP+.
Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).
Key Features
System-on-Module
● AMD/Xilinx Kintex 7:
◆ Scalable, optimized architecture, comprehensive tools, IP, and development boards and kits
◆ The 28nm node achieves an excellent cost/performance/power balance
● 2 GByte (64-bit) DDR3 SDRAM
● 16 MB QSPI Flash
Base Board
● 1 x PCIe® Gen2 x 8
● 4 x SFP+ (per line 10Gbps)
● 4 x HDMI (2 x HDMI in + 2 x HDMI out) (HDMI can drive 4K@30P)● 1 x UART (USB to UART)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x MicroSD
● LED (1 x PWR + 1 x RXD + 1 x TXD + 2 x LED) KEY (2 x KEY)
● 12V single supply
● Dimensions: 215 x 111 mm form factor
