Product Description

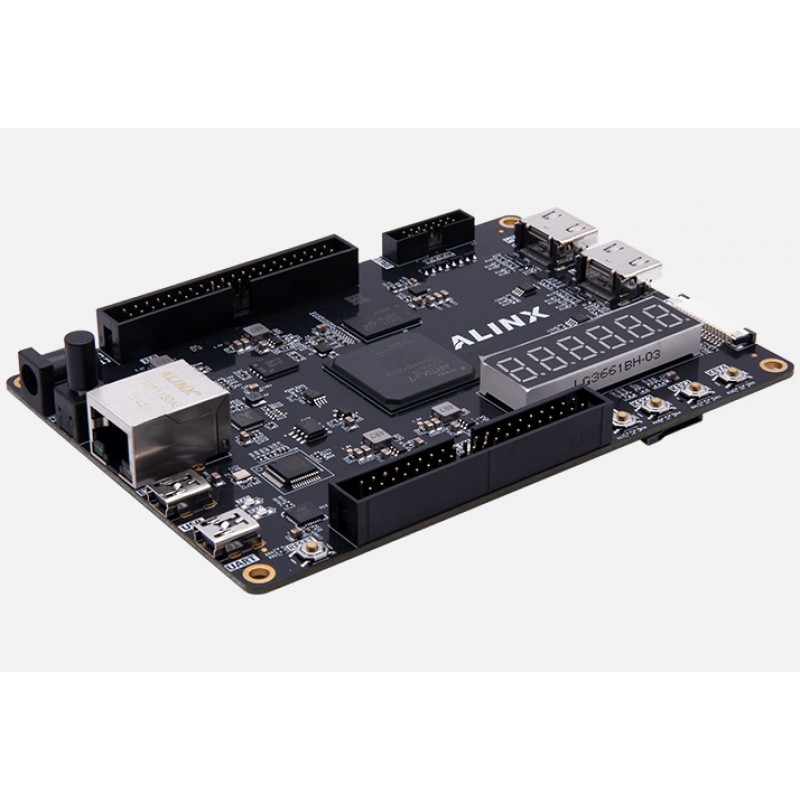

The AX7035B FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI.
Provide video applications (HDMI).
Key Features
- ● AMD/Xilinx Artix 7:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 28nm node achieves an excellent cost/performance/power balance
● 256MByte (32-bit) DDR3 SDRAM
● 16 MB QSPI Flash
● 1 x Gigabit Ethernet
● 2 x HDMI(1 x HDMI in + 1 x HDMI out)
● 1 x USB2.0
● 1 x MicroSD - ● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (2 x KEY)
● 1 x Six-in-one digital tube
● 1 x UART(USB to UART)
● 12V single supply
● Dimensions: 130 x 90 mm form factor
